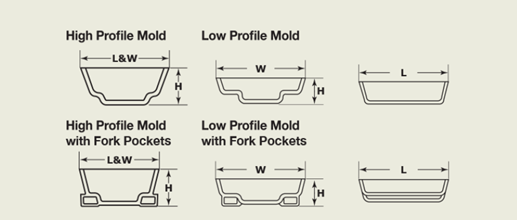

Huan-Tai offer ingot molds with many sizes of standard, low-profile and high-profile, and with or without fork pockets as in the table below. Our molds are cast from a proprietary material, the material is developed by our own to provide a very good durability.
In addition to our proprietary material, we also supply other conventional steel molds and ductile iron molds, the material will be ASTM A27 Gr 70-40, ASTM A148 Gr 105-85, AISI 8630, GGG-40, GGG-50 and other materials that customers want, contact us to find the best solution for your company.
Outside mold dimensions in millimeter | Inside mold dimensiosn in millimeter | Approx. Weight (lbs) | |||||
Width | Length | Height | Width | Length | Height | ||
1200lb low profie | 1130 | 1485 | 290 | 1048 | 1378 | 239 | 1800 |
1200lb low profie w/fork pockets | 1130 | 1485 | 308 | 1048 | 1378 | 239 | 2000 |
1200lb high profie | 1016 | 1016 | 462 | 915 | 915 | 411 | 1630 |
1200lb high profie w/fork pockets | 1016 | 1016 | 475 | 915 | 915 | 411 | 1750 |
1500lb high profie | 1229 | 1411 | 349 | 1129 | 1310 | 299 | 2100 |
1500lb high profie w/fork pockets | 1229 | 1411 | 374 | 1129 | 1310 | 299 | 2400 |
2000lb high profie | 1254 | 1445 | 403 | 1152 | 1340 | 353 | 2400 |
2000lb high profie w/fork pockets | 1254 | 1445 | 429 | 1152 | 1340 | 353 | 2595 |
